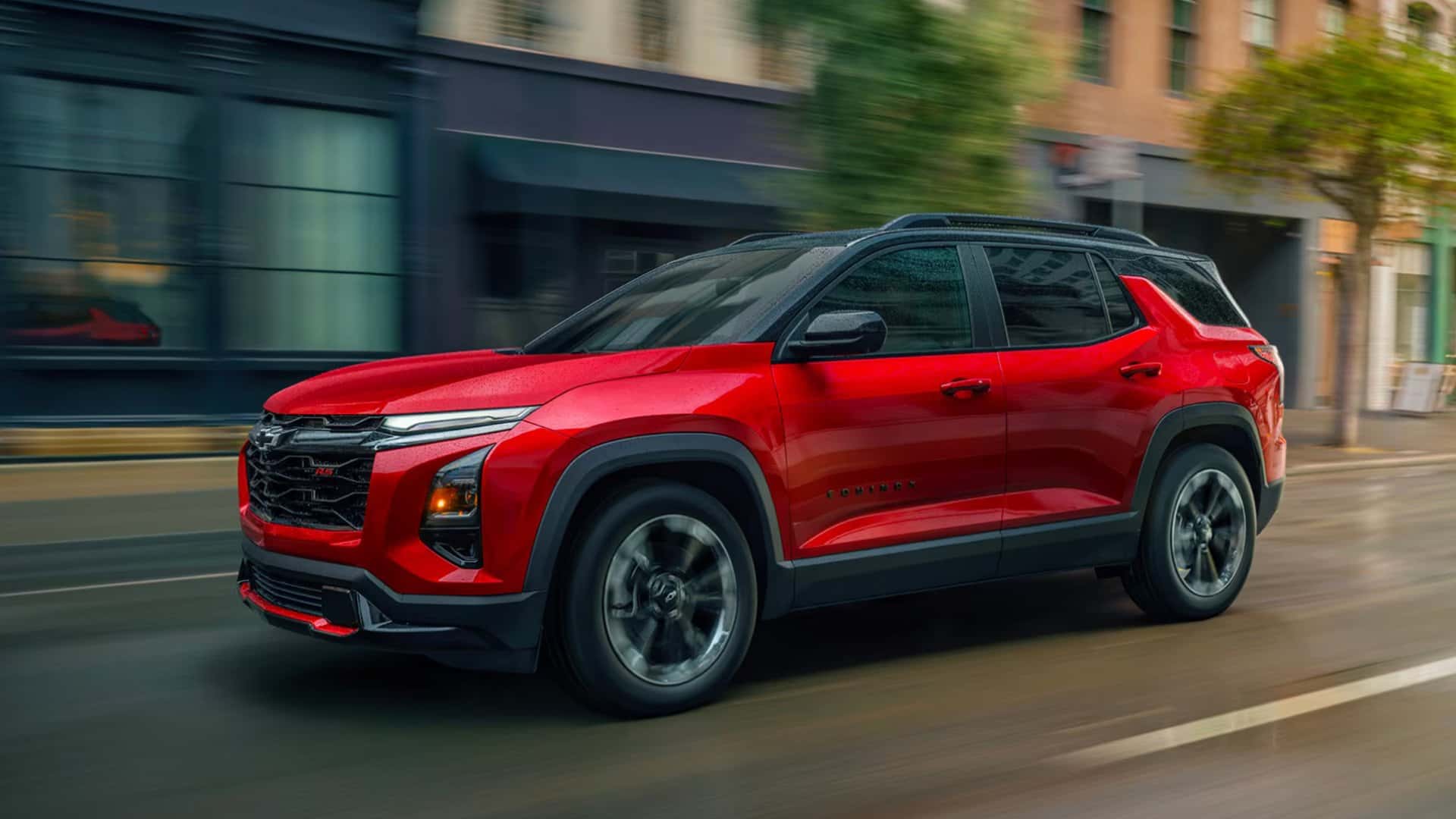

2026 Chevrolet Equinox near Lakeville, MN
The 2026 Chevrolet Equinox introduces targeted updates that focus on functional improvements and mechanical consistency across all trims. A newly available Polar White exterior color expands finish options, while a drive mode selector dial is now standard on every configuration. This addition allows drivers to adjust vehicle behavior through predefined driving modes that influence traction and throttle response.
The model is offered in multiple trims, including LT, RS, and ACTIV, each configured with distinct wheel, tire, and styling characteristics. Despite these variations, the mechanical architecture remains consistent, centered on a turbocharged engine, calibrated suspension geometry, and a structured chassis designed for stability and predictable handling. The 2026 Chevrolet Equinox maintains a compact SUV classification with defined proportions that support both maneuverability and interior capacity.
Turbocharged Engine Configuration and Output Metrics
The 2026 Chevrolet Equinox is equipped with a 1.5-liter turbocharged engine featuring dual overhead camshafts and four valves per cylinder. The engine incorporates direct injection and variable valve timing to regulate fuel delivery and optimize combustion efficiency. The use of cast aluminum for both the engine block and cylinder head reduces overall mass while maintaining durability under operating conditions.
The engine produces 175 horsepower at 5,600 rpm. Torque output differs depending on drivetrain configuration. Front-wheel drive models generate 184 lb-ft of torque within a range of 2,000 to 4,800 rpm. All-wheel drive models increase torque output to 203 lb-ft within a range of 2,000 to 4,000 rpm. This torque distribution supports consistent acceleration and sustained performance across varying speed ranges.
The inclusion of automatic stop and start functionality reduces idle fuel consumption by shutting off the engine during stationary periods. The system restarts the engine automatically when acceleration is required, maintaining operational continuity without driver intervention.
Transmission Systems and Drivetrain Functionality
The 2026 Chevrolet Equinox offers two transmission systems that correspond to drivetrain selection. Front-wheel drive models utilize a continuously variable transmission. This system adjusts gear ratios seamlessly to maintain engine efficiency and reduce shift interruptions. The continuously variable transmission supports steady acceleration and reduced mechanical complexity.
All-wheel drive models are equipped with a Hydra-Matic 8T45 eight-speed automatic transmission. This transmission features defined gear ratios that provide structured power delivery. The first gear ratio is 4.69, while the eighth gear ratio is 0.62. Intermediate ratios are configured to balance acceleration and fuel efficiency. The final drive ratio is 3.47 for all-wheel drive models and 5.81 for front-wheel drive configurations.
The drive mode selector dial allows the driver to modify drivetrain response. This system adjusts parameters such as throttle sensitivity and traction engagement. It provides adaptability across different driving surfaces without altering the mechanical components directly.
Suspension Geometry and Steering Calibration
The chassis of the 2026 Chevrolet Equinox incorporates a front MacPherson® strut suspension system with specifically tuned coil springs and a direct-acting stabilizer bar. This configuration supports controlled vertical movement and maintains tire contact with the road surface during directional changes. The rear suspension uses a four-link independent design that enhances stability and reduces lateral motion during cornering.
Steering is managed through a dual pinion rack electric power steering system. This system provides a steering ratio of 17.0 to 1, enabling precise directional control. The electric assist reduces steering effort during low-speed maneuvers and maintains consistent feedback at higher speeds. The turning circle is measured at 37.1 feet, supporting maneuverability in confined environments such as parking areas and urban streets.
Braking System and Stability Integration
The braking system consists of four-wheel disc brakes supported by anti-lock braking technology and electronic stability control. The anti-lock braking system prevents wheel lock during sudden braking, while electronic stability control maintains directional control during loss of traction. The system uses Duralife rotors paired with low-drag calipers, which reduce friction when braking is not applied and extend rotor service life.
These components work together to deliver consistent braking performance across varying driving conditions. The integration of electronic stability systems enhances control during rapid deceleration or when encountering low-traction surfaces.
Wheel Configurations and Tire Specifications
The 2026 Chevrolet Equinox offers multiple wheel sizes depending on trim configuration. Standard LT and ACTIV models include 17-inch aluminum wheels. The RS trim includes 19-inch aluminum wheels as standard equipment, with 20-inch aluminum wheels available as an option. The LT trim also offers 19-inch wheels as an available upgrade.
Tire specifications vary according to trim and intended usage. The ACTIV trim includes 235/65 R17 all-terrain tires designed to support traction on uneven surfaces. The LT trim includes 235/65 R17 all-season tires for general driving conditions. The RS trim uses 235/55 R19 all-season tires as standard, with optional 235/50 R20 all-season tires for larger wheel configurations.
These variations allow each trim to maintain alignment with its intended functional use while preserving consistent handling characteristics.
Exterior Dimensions and Structural Layout
The 2026 Chevrolet Equinox maintains defined exterior dimensions that support both interior capacity and maneuverability. The wheelbase measures 107.5 inches, contributing to stability and weight distribution. The overall length is 183.2 inches, while the width is 74.9 inches and the height is 65.6 inches.
Track measurements are closely matched between the front and rear, with the front track at 63.8 inches and the rear track at 63.9 inches. This near-equal distribution supports balanced handling characteristics. Ground clearance varies slightly by trim. The LT trim provides 8.08 inches of clearance, the RS trim provides 8.2 inches, and the ACTIV trim provides 8.05 inches.
These measurements reflect a configuration that supports both on-road stability and moderate off-road capability.

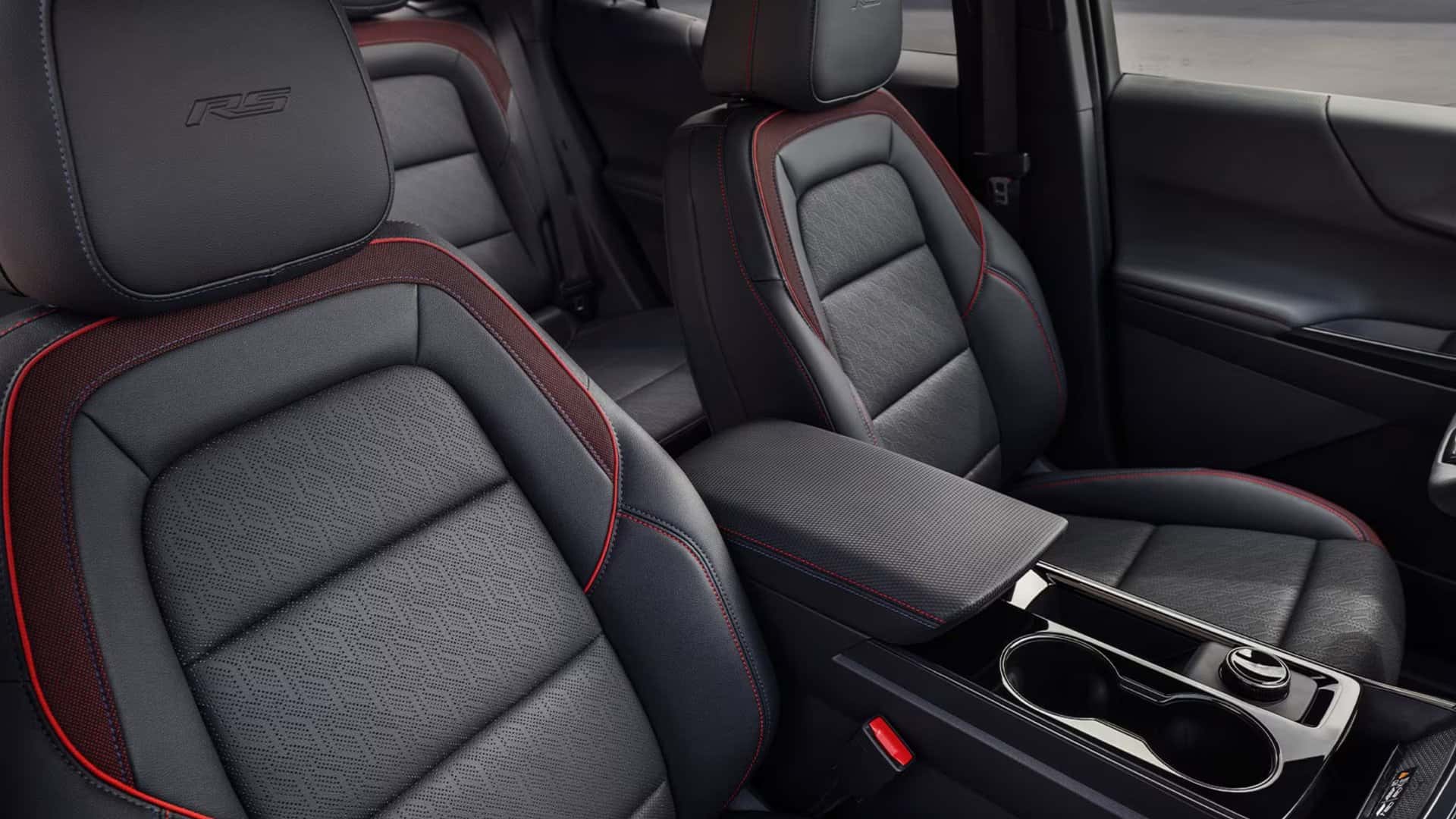

Interior Dimensions and Passenger Space Allocation
Interior dimensions are structured to provide consistent space distribution for occupants. Front headroom measures 40.0 inches without a sunroof and 38.2 inches with a sunroof. Rear headroom measures 39.2 inches without a sunroof and 37.8 inches with a sunroof.
Shoulder room measures 57.7 inches in the front and 55.8 inches in the rear. Hip room measures 55.2 inches in the front and 50.8 inches in the rear. These measurements support standard seating arrangements without compromising occupant space.
Passenger volume is measured at 104.3 cubic feet without a sunroof and 100.1 cubic feet with a sunroof. These figures reflect the impact of optional roof configurations on available interior space.
Cargo Capacity and Load Flexibility
Cargo capacity is structured to support both passenger and storage requirements. With the rear seats in place, cargo volume measures 29.8 cubic feet. When the rear seats are folded, cargo volume increases to 63.5 cubic feet. This expansion supports the transport of larger items while maintaining interior accessibility.
Load distribution plays a role in maintaining vehicle balance. Proper placement of cargo ensures that weight is evenly distributed across the chassis, preserving handling characteristics and braking performance.
Towing Capability and Capacity Limits
The towing capacity of the 2026 Chevrolet Equinox varies by drivetrain configuration. Front-wheel drive models support towing up to 800 pounds. All-wheel drive models increase towing capacity to 1,500 pounds. This increase is supported by the additional torque output and the eight-speed automatic transmission.
These capacities are influenced by total vehicle load, including passengers and cargo. Proper load management is required to maintain performance and safety standards during towing operations.
Fuel Tank Capacity and Efficiency Considerations
Fuel tank capacity differs between drivetrain configurations. Front-wheel drive models include a 14.8-gallon fuel tank. All-wheel drive models include a 15.6-gallon fuel tank. The increased capacity in all-wheel drive configurations supports extended driving range under similar operating conditions.
The combination of turbocharging, direct injection, and automatic stop and start functionality contributes to fuel efficiency. These systems work together to regulate fuel consumption based on driving conditions.

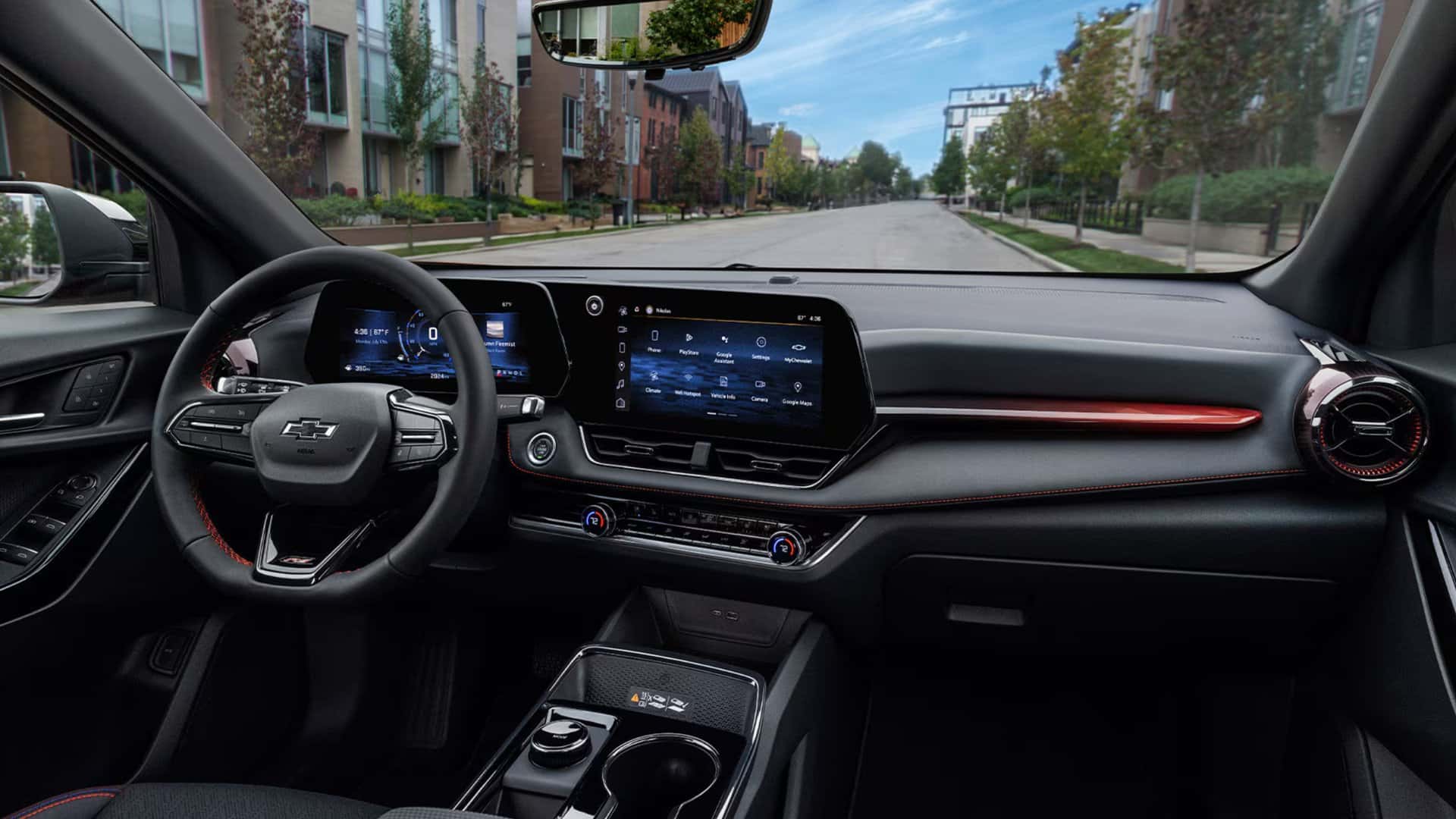

Integrated Driver Controls and Functional Updates
The addition of a standard drive mode selector dial introduces a centralized control mechanism for adjusting vehicle behavior. This system modifies parameters related to traction and throttle response. It allows the driver to adapt to different driving environments without manual adjustments to individual systems.
This feature is integrated across all trims, ensuring consistent functionality regardless of configuration. It reflects a design approach that prioritizes user-controlled adaptability within a standardized mechanical framework.
