2026 Chevrolet Equinox in Northfield, MN
The 2026 Chevrolet Equinox introduces targeted updates and consistent mechanical engineering across its trim levels, including LT, RS, and ACTIV. For the new model year, Chevrolet adds a new Polar White exterior color and makes the Drive Mode Selector Dial standard on all trims. These updates complement an established compact SUV platform defined by a turbocharged 1.5-liter engine, multiple transmission configurations, independent suspension systems, and carefully measured interior and exterior dimensions. The 2026 Chevrolet Equinox maintains a balanced approach to performance, efficiency, and usability through clearly defined specifications and engineered components.
Turbocharged 1.5L Engine with Direct Injection
The 2026 Chevrolet Equinox operates with a 1.5-liter turbocharged double overhead camshaft engine featuring direct injection and variable valve timing. The engine incorporates automatic stop and start technology to improve efficiency during idle conditions. It uses a cast aluminum block and a cast aluminum cylinder head, reducing weight while maintaining structural integrity. The valvetrain consists of dual overhead camshafts and four valves per cylinder, supporting optimized airflow and combustion efficiency.
The bore and stroke measure 2.9 inches by 3.4 inches, or 74 millimeters by 86.6 millimeters. This configuration contributes to balanced torque delivery across a wide operating range. The engine produces 175 horsepower at 5,600 revolutions per minute. Torque output varies depending on drivetrain configuration. Front-wheel drive models generate 184 pound-feet of torque between 2,000 and 4,800 revolutions per minute. All-wheel drive models produce 203 pound-feet of torque between 2,000 and 4,000 revolutions per minute.
The direct injection system precisely meters fuel into the combustion chamber. Variable Valve Timing continuously adjusts camshaft timing to optimize performance and efficiency. The integration of turbocharging increases air density entering the engine, supporting stronger low- and mid-range torque without increasing displacement.
Transmission Systems and Gear Calibration
The 2026 Chevrolet Equinox provides two distinct transmission systems aligned with drivetrain configuration. Front-wheel drive models use a continuously variable transmission. This system maintains smooth acceleration by adjusting gear ratios seamlessly without stepped shifts.
All-wheel drive models pair with the Hydra-Matic 8T45 eight-speed automatic transmission. This transmission uses stepped gear ratios to deliver defined shift points and predictable power delivery. The eight-speed configuration includes a first gear ratio of 4.69, a second gear ratio of 3.31, and a third gear ratio of 3.01. The fourth gear ratio measures 1.92, followed by a fifth gear ratio of 1.45 and a sixth gear ratio of 1.00. The seventh and eighth gears measure 0.75 and 0.62, respectively. These ratios allow strong initial acceleration and reduced engine speed during highway cruising.
The final drive ratio for front-wheel drive models is 5.81. All-wheel drive models use a 3.47 final drive ratio. This calibration ensures that torque multiplication aligns with drivetrain characteristics and traction requirements. The transmission systems operate in coordination with the standard Drive Mode Selector Dial, which allows drivers to adjust vehicle response based on driving conditions.
Chassis Architecture and Suspension Engineering
The chassis of the 2026 Chevrolet Equinox uses a MacPherson® strut front suspension system. This system includes specifically tuned coil springs and a direct-acting stabilizer bar. The configuration supports consistent ride quality and controlled body motion during cornering.
The rear suspension uses a four-link independent design. Independent rear suspension geometry allows each wheel to respond separately to road surface variations. This setup improves stability and traction while maintaining cabin comfort.
Steering input is managed by a dual-pinion rack electric power steering system. The steering ratio measures 17.0 to 1. This ratio supports balanced responsiveness without excessive steering effort. The turning circle measures 37.1 feet, allowing maneuverability in confined urban environments and parking structures.
Braking performance is supported by four-wheel disc brakes with an anti-lock braking system and electronic stability control. The braking system uses Duralife™ rotors combined with low-drag calipers.
Wheel and Tire Specifications Across Trims
The 2026 Chevrolet Equinox offers multiple wheel and tire combinations based on trim selection. The LT and ACTIV trims include 17-inch aluminum wheels as standard equipment. The RS trim includes 19-inch aluminum wheels as standard equipment, and 19-inch wheels are available on the LT trim. The RS trim also offers available 20-inch aluminum wheels for drivers seeking a larger wheel configuration.
Tire specifications vary according to trim. The ACTIV trim includes 235/65R17 all-terrain tires as standard equipment. The LT trim includes 235/65R17 all-season tires as standard equipment. The RS trim uses 235 by 55R19 all-season tires as standard equipment, with the same size available on the LT trim. When equipped with 20-inch wheels, the RS trim uses 235 by 50R20 all-season tires.
Exterior Dimensions and Structural Measurements
The 2026 Chevrolet Equinox is built on a 107.5-inch wheelbase, equivalent to 2,730 millimeters. The overall length measures 183.2 inches, or 4,653 millimeters. The overall width measures 74.9 inches, or 1,902 millimeters. Overall height measures 65.6 inches, or 1,667 millimeters.
Front track width measures 63.8 inches, and rear track width measures 63.9 inches. These measurements contribute to stable handling characteristics and balanced weight distribution.
Ground clearance at curb weight varies slightly across trims. The LT trim provides 8.08 inches of ground clearance. The RS trim provides 8.2 inches. The ACTIV trim provides 8.05 inches.
Interior Space and Passenger Dimensions

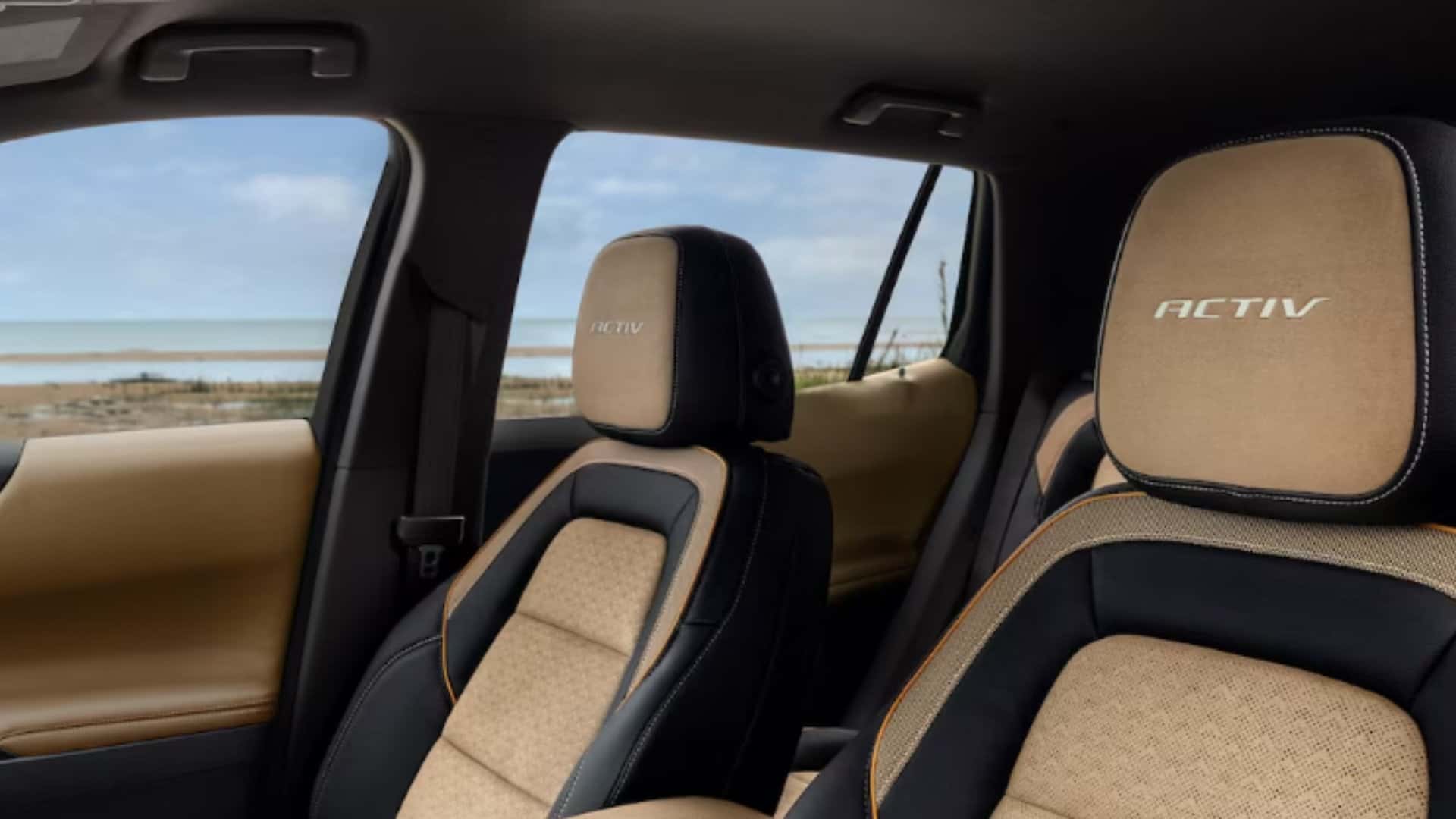

The 2026 Chevrolet Equinox provides defined interior measurements designed for occupant comfort and usability. Without a sunroof, front headroom measures 40.0 inches and rear headroom measures 39.2 inches. With a sunroof, front headroom measures 38.2 inches, and rear headroom measures 37.8 inches.
Front shoulder room measures 57.7 inches, and rear shoulder room measures 55.8 inches. Front hip room measures 55.2 inches, and rear hip room measures 50.8 inches. These measurements provide structured seating space for five occupants.
EPA passenger volume measures 104.3 cubic feet without a sunroof and 100.1 cubic feet with a sunroof. Cargo volume behind the rear seat measures 29.8 cubic feet. With the rear seat folded, maximum cargo volume measures 63.5 cubic feet. This cargo capacity supports storage flexibility for equipment, luggage, and daily transport needs.
Weight, Capacity, and Fuel Storage
The curb weight for the LT trim measures 3,428 pounds, equivalent to 1,555 kilograms. Weight distribution and structural engineering support stable road performance and controlled body dynamics.
Trailering capacity depends on drivetrain configuration. Front-wheel drive models are rated for 800 pounds of trailering capacity. All-wheel drive models are rated for 1,500 pounds. Cargo and load capacity remain dependent on weight distribution and installed options.
Fuel tank capacity measures approximately 14.8 gallons for front-wheel drive models and 15.6 gallons for all-wheel drive models. This capacity supports extended driving range between refueling intervals.
Schedule a Test Ride at Sota Chevrolet
We invite you to examine the 2026 Chevrolet Equinox in detail at Sota Chevrolet in Northfield, MN. During a scheduled test drive, you can evaluate the 175-horsepower turbocharged engine output, compare the continuously variable transmission with the eight-speed automatic configuration, and assess the stability provided by the independent rear suspension system. You can also review the 63.5 cubic feet of maximum cargo capacity and confirm the available 1,500-pound all-wheel drive trailering capability. Our team will guide you through the Drive Mode Selector Dial operation and wheel configurations to ensure the specifications align with your driving requirements. Schedule your test drive to experience the engineering precision, defined torque delivery, and measured structural design of the 2026 Chevrolet Equinox firsthand.
